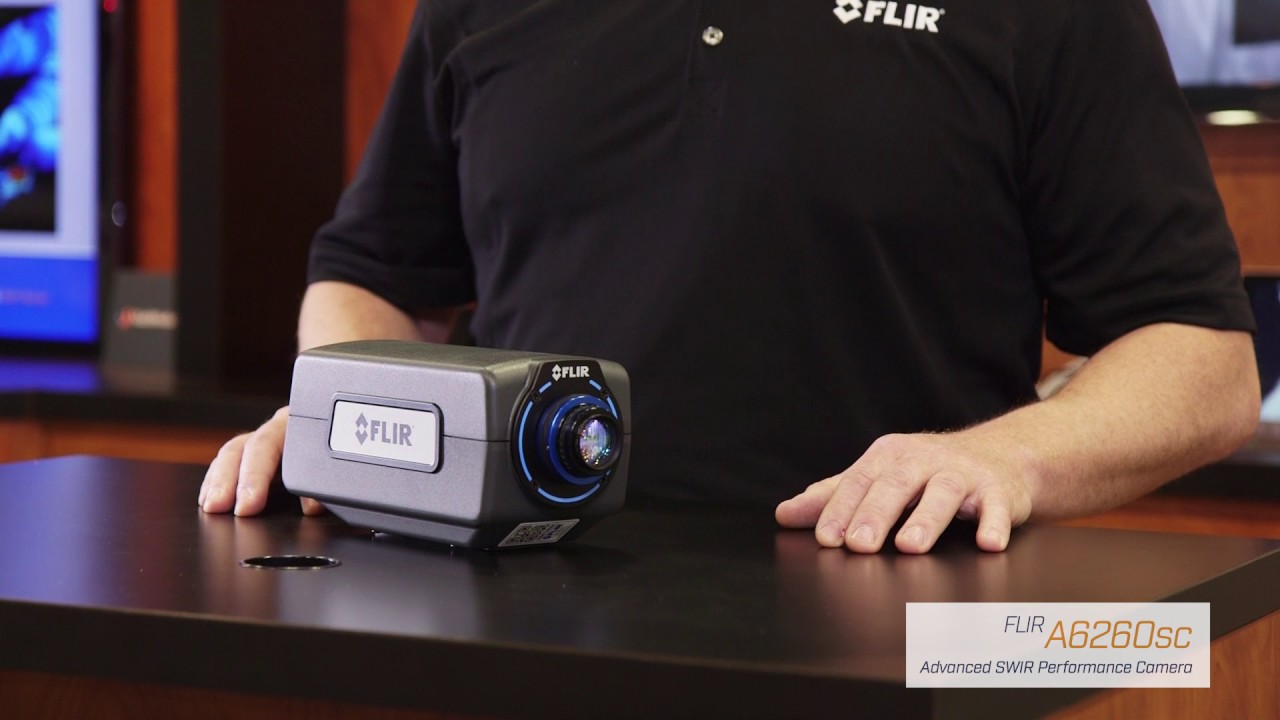

FLIR A6260sc

FLIR 고성능 SWIR 적외선 열화상 카메라


개요

  • A6260sc 카메라는 0.9 - 1.7um 또는 0.6 - 1.7um 대역을 사용하는 SWIR 카메라로, 온도-교정된 데이터를 기가비트(Gbit) 이더넷(Ethernet) 통신을 통해 PC에 스트리밍 전송하여 생생한 이미지를 관찰하고 녹화할 수 있으며, FLIR의 ResearchIR 소프트웨어를 사용하여 데이터를 쉽고 빠르게 모니터링, 수집, 분석 및 공유할 수 있습니다.


특징

FLIR A6261sc
FLIR A6262sc
  • InGaAs 디텍터 / 0.9 – 1.7 µm
  • 640 X 512 화소의 우수한 화질
  • High Gain: 19.1 ke-  초고감도
  • 400℃ ~ 2000℃에 이르는 고온 온도 측정
  • 다양한 기기 및 이벤트와 동기화 가능
  • 풍부한 광학장치 및 렌즈 확장 링 지원
  • VisGaAs 디텍터 / 0.6 – 1.7 µm
  • 640 X 512 화소의 우수한 화질
  • High Gain: 19.1 ke-  초고감도
  • 다양한 기기 및 이벤트와 동기화 가능



사양


A6261sc
A6262sc
Detector data
Detector Type
FLIR Indium Gallium Arsenide (InGaAs)
FLIR Backside Thinned Indium Gallium Arsenide (VisGaAs)
Spectral Range
0.9 – 1.7 µm
0.6 – 1.7 µm
Resolution
640 x 512
Detector Pitch
15 µm
NEI (33msec Integration Time)
8.4E9 Photons/sec/cm2 (Low Gain), 2.9E9 photons/sec/cm2 (High Gain)
Well Capacity
Low Gain: 1.44 Me-, Medium Gain: 95.7 ke-, High Gain: 19.1 ke-
Operability
> 99.5% (> 99.8% typical)
Sensor Cooling
Single Stage TE Cooler, 30C FPA setpoint
Electronics
Readout Type
Snapshot
Readout Modes
Asynchronous integrate while read, Asynchronous integrate then read
Synchronization Modes
Sync In, Sync Out
Image Time Stamp
Yes
Integration Time
50 usec to Full Frame
Pixel Clock
100 MHz
Frame Rate (Full Window)
Programmable; 0.0015 Hz to 180 Hz
Subwindow Mode
640x512, 320x256, 160x128, flexible centered windowing down to 32 x 4 (steps of 32 columns, 4 rows)
Dynamic Range
14-bit
On-Camera Image Storage
None
Radiometric Data Streaming
Gigabit Ethernet (GigE Vision)
Standard Video
NTSC or PAL composite
Command and Control
GenICam (GigE)
Temperature Measurement
Standard Temperature Range
400°C to 1200°C (752°F to 2192°F)
N/A
Optional Temperature Range
Up to 1,500°C (2,732°F), Up to 2,200°C (3992°F)
N/A
Accuracy
± 1°C or ± 1% of reading
N/A
Ambient Drift Compensation (with factory cal)
Yes
N/A
Optics
Camera f/Number
Variable using lens iris
Available Lenses
16mm, 25 mm, 35mm, 50 mm, 100mm
25mm f/2
Close-up Lenses/Microscopes
No microscopes available
Lens Interface
C-mount
Focus
Manual
Filtering
Behind lens mount for standard 1 inch diameter filters
Image/Video Presentation
Palettes
Selectable 8-bit
Automatic Gain Control
Manual, Linear, Plateau equalization, DDE
Overlay
Fixed configuration, can be turned off
Video Modes
NTSC, PAL
Digital Zoom
1x, 2x
General
Operating Temperature Range
0°C to 45°C (32°F to 113°F)
Shock/Vibration
40 g, 11 msec ½ sine pulse/4.3 g RMS random vibration, all 3 axes
Power
24 VDC (< 21.25 W steady state)
Weight w/o Lens
2.3 kg (5 lbs)
Size (L x W x H) w/o Lens
216 x 102 x 109 mm (8.5 x 4.0 x 4.3 in.)
Mounting
• 2 x ¼" -20 tapped holes
• 1 x 3/8"-16 tapped hole
• 4 x 10-24 tapped holes
